Torno CNC BN
|
|

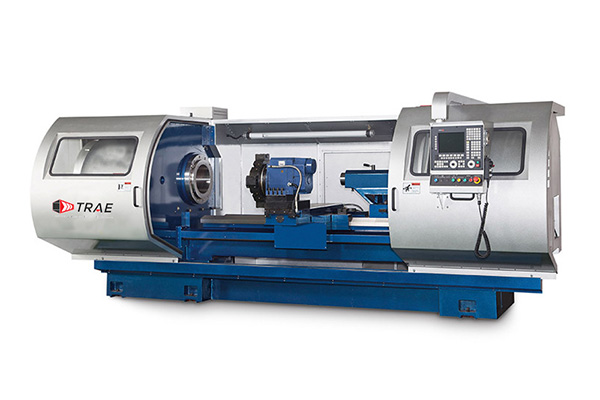

| Serie BN-3280 | Serie BN-32120 |
|
|

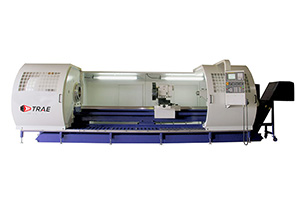

| Serie BN-40120 |
| MODELO | UNIDAD | BN-3248/ BN-4048/ BN-4848 |
BN-3280/ BN-4080/ BN-4880 |
BN-32120/ BN-40120/ BN-48120 |
BN-32160/ BN-40160/ BN-48160 |
BN-32200/ BN-40200/ BN-48200 |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity |
Center height | mm(inch) | 400(15.75″) / *500(19.68″) / *600(23.62″) | ||||||||
| Distance between centers | mm(inch) | 1200(67″) | 2200(86″) | 3000(118″) | 4000(157″) | 5000(197″) | |||||
| Swing over bed | mm(inch) | 800(31.5″) / *1000(39″) / *1200(47″) | |||||||||
| Swing over gap | mm(inch) | 1080(42.52″) / *1280(50.4″) / *1480(58.3″) | |||||||||
| Swing over cross slide | mm(inch) | 510(20″) / *710(28″) / *910(36″) | |||||||||
| Width of bed | mm(inch) | 560(22″) | |||||||||
| Bed way | 3V + I Flat Way | ||||||||||
| Cross slide width | mm(inch) | 300(12″) | |||||||||
| Gap width | mm(inch) | 450(18″) | |||||||||
| Headstock & main spindle | Spindle bore / nose | mm(inch) | 155(6″)A2-11 / *250(10″)A2-15 / *305(12″)A2-20 / *380(15″)A2-20 | ||||||||
| Spindle speed | rpm | 6″ bore (6-800 rpm) / *10″ bore (4-600rpm) / *12″ bore (4-400 rpm) / *15″ bore (4-300 rpm) (auto 4 steps) |
|||||||||
| Cross slide (X-axis) & Carriage (Z-axis) |
Cross slide travel (X-axis) | mm(inch) | 550(22″) | ||||||||
| Longitudinal travel (Z-axis) | mm(inch) | 980(58″) | 1980(78″) | 2980(118″) | 3780(149″) | 4780(188″) | |||||
| AC servo motor (X-axis) | kw | 3 Fanuc / 3.3 Simens / 14.8 Nm Fagor | |||||||||
| AC servo motor (Z-axis) | kw | 4 Fanuc / 4.4 Simens / 27.3 Nm Fagor | |||||||||
| Dia of ball screw (X-axis) | mm | Φ40 x P5 x C3 | |||||||||
| Dia of ball screw (Z-axis) | mm | Φ63 x P10 x C5 | |||||||||
| Rapid traverse speed (X-axis) | mm/min | 6000 | |||||||||
| Rapid traverse speed (Z-axis) | mm/mm | 8000 | |||||||||
| Tailstock | Quill taper | MT #6 | |||||||||
| Quill diameter | mm(inch) | Ø 125(5″) | |||||||||
| Quill travel | mm(inch) | 275(11″) | |||||||||
| Turret / toolpost | Tool station | 8-position / *10-position | |||||||||
| Size of external turning tool | mm | 32 | |||||||||
| Motor | Main spindle | hp | 30(30 inverter) / *40(40 inverter) | ||||||||
| Headstock lube pump | hp | 1/4 | |||||||||
| Headstock speed auto change x 2 | w | 60 | |||||||||
| Lube system pump | w | 22 | |||||||||
| Hydraulic oil pump | hp | 2 | |||||||||
| Coolant pump | hp | 1/4 | |||||||||
| Accuracy | Positioning | mm | +0.01 / 300 | ||||||||
| Repeatability | mm | +0.005 | |||||||||
| Spindle run-out | mm | +0.01 | |||||||||
| Tank Capacity | Hydraulic tank | l | 80 | ||||||||
| Coolant tank | l | 131 | 203 | 275 | 332 | 390 | |||||
| Controller | Controller | brand | Simens / Fagor / Fanuc / Mitsubishi | ||||||||
| Controllable | axis | 2 | |||||||||
| Weight | Net / Gross | kg (lb) | 6400(14080)/ 6800(14960) |
7200(15840)/ 7700(16940) |
8000(17600)/ 8600(18920) |
8800(19360)/ 9500(20900) |
9600(21120)/ 10400(22880) |
||||
| Dimensions | Floor space L x W x H |
mm (inch) | 3450 x 2350 x 2000 (136″x93″x79″) |
4450 x 2350 x 2000 (175″x93″x79″) |
3450 x 2350 x 2000 (136″x93″x79″) |
6250 x 2350 x 2000 (246″x93″x79″) |
7250 x 2350 x2 000 (285″x93″x79″) |
||||
| Packing Size L x W x H |
mm (inch) | 6250 x 2200 x 2200 (150″x87″x87″) |
4800 x 2200 x 2200 (189″x87″x87″) |
4800 x 2200 x 2200 (228″x87″x87″) |
6800 x 2200 x 2200 (268″x87″x87″) |
7800 x 2200 x 2200 (307″x87″x87″) |
|||||
